Sunday, 20 October 2013

CXB Construction Tips

This page is applicable to CXB's produced from October 2013.  For the "original" CXB design available in limited numbers prior to October 2013, refer to earlier Construction Tips.

Removing Support Structures

Carefully remove the support structure from both parts of the wagon.  It is suggested to use a sharp knife  carefully cut the supports away from the roof, ends, and the underframe.  Take particular care around the brake handle, brake hoses, W-irons, brake shoes and remainder of brake rigging, and the shunters steps.  The end of the brake handle and the shunters' step have a "sacrificial" guard to reduce the risk of breakage during production and shipping.  You may wish to leave the guards in place until the majority of the assembly work has been complete to minimise the risk of breakage.

Because of the fine ribbing on the brake hoses, the 3D printer's automatic software has generated many support points, which have merged into one.  Carefully cut between the brake hose and the support structure, using repeated cuts with a sharp knife (e.g. Olfa snap-off blade type or X-Acto knife with #11 blade), to separate the support structure, then carefully trim the remnants from the hose.

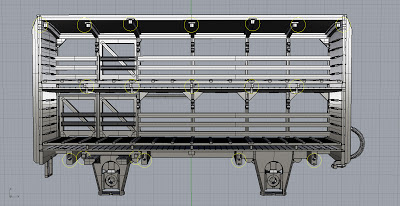

Interlocking Parts
Note that on the underside of the roof, alternating ribs extend a short distance beyond the edge of the roof to interlock the two parts when it is time for final assembly.

The support structure extends inside the upper and lower decks of the wagon to support the inside of the wagon sides.  From the outside, cut through supports attached to the small circular brackets for the horizontal wires above the side planking on each deck, on the underside of the roof, and the underside of the middle floor.  When you have cut as many of these supports as possible from the outside of the wagon, gently wiggling the supports structure (e.g. with needle nose pliers) from the open side, will break the remaining supports and allow pieces of the structure to be torn away. Be careful not to apply excessive force to avoid damaging the side planks and door areas.

Once the majority of the support structure has been removed, carefully go over both parts and cut away the small supports which typically extend from one part to another, for example, around the brake rigging and between the frame members of the underframe.  An X-acto type hobby knife with a sharp pointed blade (Exacto #11 or similar) is quite useful for getting into the nooks and crannies.

Go around the surfaces of each part where they will join together, and smooth off any remnants of the fine supports, on the roof, ends, middle and lower floors, etc.  A sanding stick or small file can be useful for this, but be careful not to damage the projecting parts which are designed to interlock.  Also remove any remnants from the very ends of the projecting parts.  When you think you have finished, test fit the two halves together.  Interlock the roof ribs first, then gently bring the underside of the wagon together to see how it fits.  There are four frame members in the underframe which have retangular pins which fit into oval holes in their opposite number (a variation on the square peg in the round hole concept).

If the two halves don't close completely, dismantle again and check for and remove any tiny bumps from the support structure attachments.

Near each end of the wagon, there are small tabs designed for 1 mm x 3 mm long pan-head self tapping screws, to secure the two halves of the wagon together.

In the long term, you have the option of gluing the body together, e.g. with superglue, or continuing to use the screw fixings.  A half-way option is to just glue the roof area together, which would allow the join in the roof to be smoothed off, but would probably allow the underframe to be separated enough to change wheelsets, should that be necessary in the future.

As part of the clean-up stage, remove the four W-iron/axlebox assemblies which are attached to the rest of the wagon by four cylindrical supports (and probably some smaller supports).  It is suggested to "nibble" through the supports with fine sidecutters rather than trying to cut through in one go.  Once freed, the remnants of the supports should be cleaned up from both the W-iron/axlebox assemblies and the wagon sideframes.

Tapping Holes


Tap the coupler mounting holes 2-56 (or 8BA).  As printed, the holes are 1.8 mm dia.  As you tap the holes, sight through the gap between the lower double floor layers and stop when the end of the tap hits the upper floor.

Note:  Tapping the coupler mounting holes is preferable to using self-tapping screws which may fracture the material.  Although fairly robust, the material is more brittle than styrene or polyurethane.

Adding Wire Detailing


Several lengths of 0.4 mm brass wire are required as follows:
  • A - 59.5 mm, above timber side rails, 4 pieces per side
  • B - 13.5 mm, above timber side rails, upper deck only, 2 pieces per side
  • C - 12 mm, upper doors, 2 pieces per side
  • D - 24 mm, lower doors, 2 pieces per side
  • E - 28.5 mm, upper door top guide, 1 piece per side
  • F - 25 mm not including 90 degree bend on one end, brake pull rod, 1 piece per wagon
The holes for the above have all been incorporated in the 3D-printed model.  The holes for the horizontal rods above the side planks have a nominal diameter of 0.6 mm.  If a wire does not go in easily, do not force it.  Clean out the hole(s) with a 0.45 mm or 0.5 mm drill bit in a pin vice.  The holes for the wires in the doors and the upper door top guide are smaller, and will definitely need cleaning out with a 0.45 mm or 0.5 mm drill bit.

Also using 0.4 mm wire, form the handrails which are located vertically on the ends of the wagon, above the brake lever and shunter's step.  The spacing between the holes is 6.5 mm.

W-Irons and Compensation Options


Either of the readily available etched brass W-irons can be used, i.e. the "closed" or "open" style.  These are available from Railwest Models.

"Closed" (left) and "Open" W-irons.  Photo courtesy of Railwest Models
Remove the W-irons from the fret, fold them up and fit brass bearings in the usual way.

The underframe of the wagon includes eight small holes at each end for mounting the W-irons, using 1 mm x 3 mm pan-head self tapping screws, although each W-iron requires only two screws.  (These are available from DCC Concepts part no. DCS-PH103.)

(Of course, you can glue the W-irons in position if you prefer, in which case the holes and grooves included in the underframe help to locate the W-irons in the correct position.)

Different sets of holes are used at each end, depending on the type of W-iron used and whether compensation is desired.  Note that if using compensation, the rocking W-iron is positioned at the end of the wagon opposite the brake handle so that the rocking action does not interfere with the brake handle.  The various options are:

Open W-Irons, No Compensation

Use the pair of holes at each end which are closest together (7 mm spacing) on the wagon centreline.  Slide the W-irons (without wheels) sideways into position between the brake shoes, and fix them in position with screws.

Open W-Irons, Compensation with Screws as Pivot

Use the same holes as described above for no compensation, and fit the W-iron at the brake handle end without modification.  However, at the end opposite the brake handle, remove the small brass tabs which project from the top surface of the W-Iron which then allows the W-Iron to rock sideways slightly using the fulcrum strip built into the chassis.  After tightening the fixing screws on the rocking W-iron, back them off slightly to allow it to rock.  It may be necessary to open out the etched holes in the W-iron slightly with a 1.1 mm drill bit or fine round file to obtain free movement.

Open W-Irons, Compensation with Wire Pivot

At the brake handle end of the wagon, use the 7 mm spaced holes on the wagon centreline and fit the W-iron without modification.

At the end opposite the brake handle, remove the separate pivot bracket from the centre of the W-iron and fold up the ends to match the etched holes in the W-iron.  It may be necessary to bend the ends slightly more than 90° to minimise slop in the rocking W-iron.  The plan is to use the holes in the pivot bracket to secure the rocking W-iron to the wagon, using the pair of holes on the axle centreline spaced 7 mm apart.

As per the intended W-iron assembly procedure, pass a piece of brass wire (e.g. 1 mm diameter) through the pivot bracket and the corresponding holes in the side of the W-iron, and solder the wire on the outside only to the pivot bracket.  Check that the W-iron can move freely with respect to the pivot bracket.  Trim the excess wire from the outside of the W-iron, and file the wire and solder until it is almost flush with the sides of the W-irons to allow it to be slid sideways between the brake shoes, and fit two screws into the holes in the pivot bracket.

Closed W-Irons, No Compensation

Use the fixing holes which are located on the axle centre line to fix both W-irons into position.  One W-iron fits the holes which are 15 mm apart, while the other fits the holes which are 7 mm apart.

A styrene spacer approx. 0.75 mm thick will be necessary to achieve the correct height of the wagon above rail.  On the end of the wagon opposite the brake handle, the spacer will need to be in two pieces to fit either side of the raised fulcrum strip.

Closed W-Irons, Compensation

At the brake handle end of the wagon, use the fixing holes which are located on the axle centre line, 15 mm apart, to fix the W-iron into position.  A styrene spacer approx. 0.75 mm thick will be necessary to achieve the correct height of the wagon above rail.

At the end opposite the brake handle, remove the separate pivot bracket from the centre of the W-iron and fold up the ends to match the etched holes in the W-iron.  It may be necessary to bend the ends slightly more than 90° to minimise slop in the rocking W-iron.  The plan is to use the holes in the pivot bracket to secure the rocking W-iron to the wagon, using the pair of holes on the wagon centre line spaced 10 mm apart.  To allow clearance for the screw heads, file or grind a hollow in the side of the W-iron.

As per the intended W-iron assembly procedure, pass a piece of brass wire (e.g. 1 mm diameter) through the pivot bracket and the corresponding holes in the side of the W-iron, and solder the wire on the outside only to the pivot bracket.  Check that the W-iron can move freely with respect to the pivot bracket.  Cut the centre of the brass wire out, to allow access for the fixing screws.  Cut the wire initially at a 45° angle to avoid forcing the sides of the W-iron apart, then cut the remaining section out leaving just enough to form the pivots for the rocking action.  Also trim the excess wire from the outside of the W-iron, and file the wire and solder until it is almost flush with the sides of the W-irons to allow it to be slid sideways between the brake shoes.

To allow the pivot bracket to sit flush against the bottom of the underframe, grind away the raised fulcrum strip.  Then, fix the W-iron in position with two screws.

For all W-Iron options:

Fit the wheels (26 mm axle length) and check that wagon sits at the correct height above the rails, i.e. the coupler mounting surfaces should be 11.5 mm above rail level, and adjust if necessary.

After checking that the wagon runs happily, fit the cosmetic W-iron/axlebox assemblies to the outside of the brass W-irons.  It will probably be necessary to clean out the holes in the W-iron/axlebox assemblies with a 2 mm (or slightly larger) drill bit to fit over the brass bearings.

Weighting


With no additional weight, the completed wagon including wheels and couplers weighs around 38 grams.  The "desirable" weight for a 4-wheel wagon is around 65-70 grams to ensure optimum operation including operation of Kadee couplers.

Addition of a Marbelup Models sheep load in Aluminide material adds approximately 24 grams, bringing the total weight up to around 62 grams.

If modelling an empty wagon, the weight can be increased by gluing lead shot or sheet lead between the various frame members of the underframe, where it would not be seen in normal operation.

Painting


Either enamel or acrylic hobby paints can be used to paint the finished model.

If desired, the interior of the wagon can be painted (airbrushed) prior to assembly.  Experience to date suggests that this is probably not necessary as overspray from painting the outside tends to take away the "bare plastic" look on the inside surfaces.

Obviously, if a sheep load is to be included, it should be added after spray painting the wagon itself. Tamiya XF-78 Wooden Deck Tan is a reasonable colour for the sheep load.

Once the wagon is completely assembled, the join line on the roof can be filled and smoothed off. The join lines on the ends are virtually invisible as they are aligned with the angle iron end braces.



VG Construction Tips


Removal of Support Structure


The VG van is printed on end, which results in the optimum surface finish on the roof, sides and one end. Removal of the supports will leave small attachment points on the other end which require cleaning up.

In general, it is best to first cut away the supports from the areas which have small details, and the areas which will be visible on the the finished model with a sharp hobby knife.  (An X-Acto style knife with a #11 fine blade can be useful for the fiddly bits.) Take particular care removing the supports from the brake handles, shunters' steps, and underfloor brake gear.  On the end, take care around the vacuum hose and the vertical and horizontal strengthening angles.  The van is symmetrical so the visible end can be used as a guide to where these items are located on the end with the supports.  On delicate areas, such as the inside the vacuum hoses, it helps to lightly score the supports using several strokes of the knife, rather than trying to cut through in one go.

The brake handles and shunters' steps have "sacrificial" guards around them to provide some protection against breakage during production and shipping of the 3D printed model.  It is suggested to leave these in place until most of the other work has been done to minimise the risk of breakage to these delicate parts.

Once the supports have been cut away from the delicate areas, the remaining supports can be broken away by wiggling them or applying pressure to break the small attachment points.  It is not necessary to remove all the supports from inside the van body as these will not be visible on the finished model.

On the end to which the supports were attached, carefully clean up the remaining small attachment points using various knife blades (A scraping action can help.), fine files and/or sanding sticks.  There is some "bolt head" detail on the lamp irons and near the bottom of the vertical angles, so refer to the other end to determine which of the little "bumps" should be left alone and which should be removed.

Once the supports structure has been removed, the hardest part is completed!

Tapping Holes


The mounting holes for the couplers and bogies should be tapped 2-56 (or 8BA).  As printed, the holes are 1.8 mm dia.  Clear out the holes with a 1.8 mm drill in a pin vice.

Note:  Tapping the holes is preferable to using self-tapping screws which may fracture the material.  Although fairly robust, the material is more brittle than styrene or polyurethane.

Bogies


Railwest Models sell suitable bogies.

An alternative is American Models S Scale standard gauge Bettendorf bogies which can be regauged to Sn3½ as described on the Sn3½ Blog.

If necessary, adjust the height of the van on the bogies so that the coupler mounting surface is 11.5 mm above rail level.

Couplers


The VG is designed for Kadee "whisker" couplers.  Either the #158 (scale size) or #148 (normal size) couplers can be used, with #262 draft gear boxes.

The draft gear boxes supplied with the #148 and #158 couplers do not fit as they have a different mounting hole position.  The #262 draft gear boxes are narrower and have been used because they allow details such as the brake hoses to be positioned the scale distance from the van centre line.  Also, the #262 draft gear boxes are easier to use as the lid snaps into position.

Note that the height from rail level to the coupler mounting surface should be 11.5 mm, the standard for Kadee couplers.

Handrails


Handrails can be formed from 0.4 mm brass wire.  Starter holes are provided on the side and ends, which should be opened out with a 0.45 mm or 0.5 mm drill bit.

The lengths of the handrails (centre to centre) are as follows:
  • doors (2 per side): 9.25 mm
  • sides (above brake handle): 10.75 mm
  • ends (above brake handle): 11.75 mm

Brake Pull Rods and Hangers



On each side, there is a brake pull rod which can be formed from 0.4 mm brass wire.  Starter holes are provided which should be opened out with a 0.45 mm or 0.5 mm drill bit.  On the brake gear hanger nearest the vacuum cylinder, support the underside of the small lever from the inside when drilling to avoid braking the small lever.  The distance (centre to centre) between the holes is 44.5 mm.

The hangers for the brake pull rods can be formed from brass ministrip 0.8 mm x 0.25 mm (made by North Yard NZ and available from Railwest Models).  Small slots have been provided in the underside of the door track for attaching the top end of the brake hangers.  The brass ministrip should be cut to lengths of 11 mm and 13.5 mm, with 2 mm at the bottom bent over to form a loop to support the brake pull rod.  (Refer to prototype photos for arrangement.)

Floor and Weighting


To allow the van to be 3D-printed in one piece, the underframe is a skeleton only, with no floor.  If desired, rectangles of styrene (approx 1 mm thick) can be cut and glued between the underframe cross members to represent the floor.  Optionally, some or all of these pieces can be cut from sheet lead to add weight to the van.

With no additional weight, the finished VG with American Models (plastic) bogies weight approx. 78 grams.  The suggested weight for a van of this length is approx. 110 grams (See Sn3½ Blog.).

Moving from the centre of the van towards the end, the dimensions of the "floor" pieces are as follows:
  • Centre: 20.25 x 14.5 mm (2 required)
  • Centre + 1: 20.25 x 14.5 mm (2 required)
  • Centre + 2: 22 x 14.5 mm (4 required)
  • End: 25 mm x 14.5 mm (4 required)
Some of the pieces may require slight trimming around small details.



Saturday, 5 October 2013

WAGR WMD Hopper Wagon

First Test Print of WMD (no added detail)
Due to popular demand, Marbelup Models has created a WMD version of the WMC iron-ore wagon.

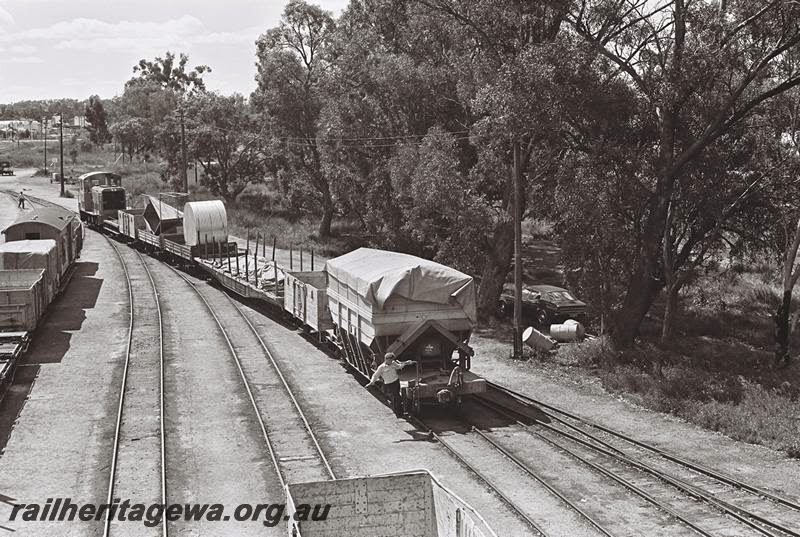

WMD's were used to carry coal, wheat and talc, and roamed widely over the rail network including the Metropolitan, South-West, Great Southern and MidWest regions.  The photo below from the Rail Heritage WA Archive shows one being shunted at Narrogin.


WMD's could often be found in general goods trains compared to WMC's which ran in dedicated block trains in iron-ore traffic.  WMD's were painted both in grey, the same as WMC's and later in Westrail yellow.  For more information on the prototype, see the WA Wagon Pages.

The expected price of the WMD (body only) will be about AU$95, subject to exchange rate variations.  The reason for the price difference compared to the WMC is simply the additional volume of resin used to print the hungry boards, as the costs for this particular 3D printing process is based on the amount of material in the finished item.  3D-printed bogies are available for $30 per pair, not including wheels.


Friday, 4 October 2013

CXB 4-wheel Sheep Wagon

CXB Sheep Wagon after added detailing and painting

CXB Sheep Wagon available to order Now!


Marbelup Models has revised the design for the CXB Sheep Wagon to comply with the changed i.Materialise print specifications, so the CXB is now available to order.  The price is approx. $105 each, subject to change due to exchange rate variations against the Euro.  3D-printed sheep loads are also available for $15 per wagon (90 sheep) or $30 for 2 wagon loads (180 sheep).

The revised model has slightly coarser details than the model shown here, due to the change in print specifications from 0.3 mm minimum detail size to 0.5 mm, although the difference in the finished model is barely noticeable.  The revised model has been designed to accommodate readily-available etched brass W-irons, but cosmetic axleguard/spring units will be included in the 3D print.



The 3D-printed model includes:
  • Floor detail include double floors on upper and lower decks
  • Roof including rain strips and downpipes
  • Detailed axleboxes and springs
  • Brake shoes and vacuum brake cylinder
  • Vacuum brake hoses
  • Brake lever
  • Shunter's step
Most of the photos show the model after detailing, but prior to painting.  The grey parts are produced by the 3D printing process.  As always, click on any of the photos to zoom in.

To complete the model, the modeller will be required to add:
  • Wheels (12 mm diameter 4-hole or disc, 26 mm axle length)
  • Etched brass W-irons (available from Railwest models).
  • Brass bearings (e.g. North Yard 2 mm diameter, pinpoint)
  • Couplers and fixing screws (e.g. 2-56). Recommended couplers are Kadee #158 with #262 draft gear boxes.  Note that the #242 draft gear boxes, supplied with the #158 couplers, have a different mounting hole location and are also too wide to clear the brake pipe.  If preferred, Kadee #148 couplers can be used with the "full size" knuckle rather than the "scale" knuckle.  Both the #148 and #158 are "Whisker" couplers.
  • Self tapping screws for fixing body and W-irons - 1 mm x 3 mm pan head, 6 required per wagon. (DCC Concepts DCS-PH103).
  • Brass wire (0.4 mm) for horizontal rods in body sides and doors, upper door guide rods, end handrails, and brake rod.  3 lengths are required per wagon.
  • Glue, paint, decals, etc.
The model consists of two unequal "halves", with a vertical join running end to end.  This will allow access to the interior for painting and adding a load of sheep, if desired.

The two sections are 3D-printed on their sides, which results in a good surface finish on the roof and outside surfaces.

For help with assembly, see the CXB Construction Tips.  For information on the prototype CXB's, see the WA Wagon Pages.

Monday, 30 September 2013

CXB "pre-October 2013" Construction Tips

This page refers to the "original" CXB design available in limited numbers prior to October 2013.  For CXB's produced from October 2013 refer to the updated Construction Tips.

Removing Support Structures

Carefully remove the support structure from both parts of the wagon.  It is suggested to use a sharp knife  carefully cut the supports away from the roof, ends, and the underframe.  Take particular care around the brake handle, brake hoses, W-irons, brake shoes and remainder of brake rigging, and the shunters steps.

Because of the fine ribbing on the brake hoses, the 3D printer's automatic software has generated many support points, which have merged into one.  Carefully cut between the brake hose and the support structure, using repeated cuts with a sharp knife (e.g. Olfa snap-off blade type), to separate the support structure, then carefully trim the remnants from the hose.

Interlocking Parts
Note that on the underside of the roof, alternating ribs extend a short distance beyond the edge of the roof to interlock the two parts when it is time for final assembly.  Also note that on the middle floor of the smaller part, the floor ribs extend a short distance to interlock with the other part.

The support structure extends inside the upper and lower decks of the wagon to support the inside of the wagon sides.  From the outside, cut through supports attached to the underside of the roof, and the underside of the middle floor.  When you have cut as many of these supports as possible from the outside of the wagon, gently wiggling the supports structure (e.g. with needle nose pliers) from the open side, will break the remaining supports and allow pieces of the structure to be torn away. Be careful not to apply excessive force to avoid damaging the side planks and door areas.

Once the majority of the support structure has been removed, carefully go over both parts and cut away the small supports which typically extend from one part to another, for example, around the brake rigging and between the frame members of the underframe.  An Exacto type hobby knife with a sharp pointed blade (Exacto #11 or similar) is quite useful for getting into the nooks and crannies.

Go around the surfaces of each part where they will join together, and smooth off any remnants of the fine supports, on the roof, ends, middle and lower floors, etc.  A sanding stick or small file can be useful for this, but be careful not to damage the projecting parts which are designed to interlock.  Also remove any remnants from the very ends of the projecting parts.  When you think you have finished, test fit the two halves together.  Interlock the roof ribs first, then gently bring the underside of the wagon together to see how it fits.  As well as the interlocking projections at the middle floor level, there are four frame members in the underframe which have retangular pins which fit into oval holes in their opposite number (a variation on the square peg in the round hole concept).  There are also two similar but smaller interlocking pins as part of the W-iron assembly at the end opposite the brake handle.

If the two halves don't close completely, dismantle again and check for and remove any tiny bumps from the support structure attachments.

Tapping Holes


Holes to be tapped - Left Side
Tap the coupler mounting holes 2-56 (or 8BA).  As printed, the holes are 1.8 mm dia.  As you tap the holes, sight through the gap between the lower double floor layers and stop when the end of the tap hits the upper floor.

Tap the two holes in the W-iron assembly at the end opposite the brake handle with a M1.4 tap.  These holes will secure the other half of the W-iron assembly after the wheelset has been inserted.

Holes to be tapped - Right Side
On the smaller right "half" of the wagon, identify the two 1.1 mm dia. holes near each end which are intended holding the halves of the wagon together.  Two holes are provided at each end, but only one need be used, the other is a "spare" in case of a stripped thread, or similar catastrophe.

Note:  Tapping the holes is preferable to using self-tapping screws which may fracture the material.  Although fairly robust, the material is more brittle than styrene or polyurethane.

Bearings and Wheelsets

Gently clear out the bearing holes with a 2 mm drill bit in a pin vice, and also make sure there are no remants of supports in the recess around the bearing hole, otherwise the bearing may not go in all the way.

Press the bearings into the bearing hole, resting the axlebox on a small block of wood or similar to take the pressure to avoid bending the W-irons.

Insert one end of each axle into the bearing hole on the half with the brake shoes, and gently press the wheels into position, where they will be retained by the brake shoes pending final body assembly.

Body Assembly

As per the earlier test fit, interlock the roof sections first and gently close the gap at the underside of the wagon.  Align the free ends of the axles with the bearings, which should allow the body halves to close together.

Insert M1.4 x 3 mm screws into the fixing holes at each end, to secure the two body halves together. Gently squeeze the sides of the wagon together to get a tight fit as you tighten the screws.

Insert 2 x M1.4 x 3 mm screws into the fixing holes in the W-iron assembly.

Check that the wheels roll freely without rubbing.  Rubbing may occur if there are any tiny remnants of support attachments, particularly in the inside surfaces of the brake blocks.

In the long term, you have the option of gluing the body together, e.g. with superglue, or continuing to use the screw fixings.  A half-way option is to just glue the roof area together, which would allow the join in the roof to be smoothed off, but would probably allow the underframe to be separated enough to change wheelsets, should that be necessary in the future.

Compensation Option

The W-iron assembly at the end opposite the brake handle, has a hidden "living hinge" which allows it to rock from side to side, to accommodate slightly uneven track.  As supplied, the W-iron assembly is secured at each end to the inside of the solebars via four cylindrical connections.  Cutting these connections, allows the W-iron assembly to rock and provide the compensation feature.
Cylindrical connections to be cut for compensation (4 each side)
It is up to the modeller whether they wish to retain the rigid underframe, as supplied, or cut the cylindrical connections to enable the compensation.  However, the change to compensation is not reversible, other than by inserting pieces of styrene, or similar, 1mm thick between the the W-iron assembly and the underside of the floor.

Adding Wire Detailing

Several lengths of 0.4 mm brass wire are required as follows:
  • A - 59.5 mm, above timber side rails, 4 pieces per side
  • B - 13.5 mm, above timber side rails, upper deck only, 2 pieces per side
  • C - 12 mm, upper doors, 2 pieces per side
  • D - 24 mm, lower doors, 2 pieces per side
  • E - 28.5 mm, upper door top guide, 1 piece per side
  • F - 31 mm not including 90 degree bend on one end, brake pull rod, 1 piece per wagon
The holes for the above have all been incorporated in the 3D-printed model, with a nominal diameter of 0.6 mm.  If a wire does not go in easily, do not force it.  Clean out the hole(s) with a 0.45 mm or 0.5 mm drill bit in a pin vice.

Also using 0.4 mm wire, form the handrails which are located vertically on the ends of the wagon, above the brake lever and shunter's step.  The spacing between the holes is 6.5 mm.

Weighting

With no additional weight, the completed wagon including wheels and couplers weighs around 38 grams.  The "desirable" weight for a 4-wheel wagon is around 65-70 grams to ensure optimum operation including operation of Kadee couplers.

Addition of a Marbelup Models sheep load in Aluminide material adds approximately 24 grams, bringing the total weight up to around 62 grams.

If modelling an empty wagon, the weight can be increased by gluing lead shot or sheet lead between the various frame members of the underframe, where it would not be seen in normal operation.  It would also be possible to slide thin metal (less than 1 mm thick) between the double floor layers, although this would preclude the view of "daylight" between the double floors.

Painting

Either enamel or acrylic hobby paints can be used to paint the finished model.

If desired, the interior of the wagon can be painted (airbrushed) prior to assembly.  Experience to date suggests that this is probably not necessary as overspray from painting the outside tends to take away the "bare plastic" look on the inside surfaces.

Obviously, if a sheep load is to be included, it should be added after spray painting the wagon itself. Tamiya XF-78 Wooden Deck Tan is a reasonable colour for the sheep load.

Once the wagon is completely assembled, the join line on the roof can be filled and smoothed off. The join lines on the ends are virtually invisible as they are aligned with the angle iron end braces.




Tuesday, 17 September 2013

WMC/WMD Construction Tips

Removing Support Structures

Carefully remove the support structure from the wagon.  It is suggested to use a sharp knife to cut the supports away from visible areas.  Take particular care around the brake hoses and end steps.

Once the majority of the support structure has been removed, carefully go over the wagon and cut away the small supports which typically extend from one part to another, for example, around the brake cylinders and other detail items.  An Exacto type hobby knife with a sharp pointed blade (Exacto #11 or similar) is quite useful for getting into the nooks and crannies.  For some parts around the brake cylinders where even a fine knife blade won't reach, a piece of wire (e.g. 0.8 mm spring steel wire) can be used to push against the support attachments and break them off.

Go over the model and smooth off any remnants of the fine supports, expecially in the visible areas.  A sanding stick or small file can be useful for this.

Bogie and Coupler Mounting Holes


The mounting holes for the couplers and bogies have been printed at 1.8 mm diameter to suit 2-56 screws.  Clear out the holes with a 1.8 mm drill in a pin vice, but it is preferable to NOT drill through the floor to avoid the screws being visible on the finished model.

Due to the difficulty of tapping the blind holes, the 3D print includes vertical grooves in the sides of the holes to help the screws cut their own threads, so tapping the holes is not required nor recommended.

Bogies


The bogie mounting points are designed to be 10 mm above rail level.  Depending on the bogies used and the height of their bolsters, it may be necessary to add washers or similar so that the coupler mounting surface is 11.5 mm above rail level.

Marbelup Models WMC/WMD Bogie
Marbelup Models has 3D-printed bogies of the correct design for the WMC/WMD available for sale.  Similar bogies, although of slightly different shape, are available from Black Diamond Models in Queensland.  The Black Diamond bogies are cast in white metal and are supplied fully assembled with wheels.

Assembly of 3D-Printed Bogies



The Marbelup Models WMC/WMD bogies are printed in two identical halves.  A set contains four pieces to make one pair of bogies.  As with other 3D printed parts, the first step is to removed the supports structure and clean up the small supports in the holes in the bogie sideframes, around the springs, etc.  Take care around the brake shoes to avoid breaking them.

The bolster section of each bogie half contains two holes intended for M1.4 screws (which are supplied with the bogies).  The larger hole nearest the narrow end of the bolster is a "clearance" hole and should be cleaned out with a 1.4 mm drill.  The smaller hole, nearest the bogie sideframe, should cleaned out with a 1.1 mm drill and tapped with an M1.4 tap.  (Drills and taps are available from North Yard in New Zealand.  The M1.4 tap is part No. 3014.  Refer to Page 5 of the North Yard Catalogue.)

Marbelup Models can supply the bogies with the holes already tapped for a small additional cost.

An alternative to M1.4 screws is to use 1.5 mm x 6 mm self tapping screws, which are available from DCC Concepts - Part No. DCS-PH156.

The bogie sideframes contain holes for fitting brass pinpoint bearings (available from Railwest Models).  These holes should be cleaned out with a 2 mm drill bit, after which the bearings should press fit into place.  The bogie is designed for 12 mm wheels with 26 mm axles.

When assembling the two halves, it may be necessary to trim the narrow end of the bolster by approx. 0.25 mm to get good alignment of the fixing holes and centre pivot hole.  (Later production will be made slightly shorter.)  After assembly, clean out the centre pivot hole with a 2.2 mm drill bit to suit 2-56 mounting screws.  (2.2 mm provides adequate clearance without excessive slop.)

Couplers


The WMC/WMD is designed for Kadee "whisker" couplers.  Either the #158 (scale size) or #148 (normal size) couplers can be used, with #262 draft gear boxes.

The draft gear boxes supplied with the couplers do not fit as they have a different mounting hole position.  The #262 draft gear boxes are narrower and have been used because they allow details such as the brake hoses to be positioned the scale distance from the wagon centre line.  Also, the #262 draft gear boxes are easier to use as the lid snaps into position.

Note that the height from rail level to the coupler mounting surface should be 11.5 mm, the standard for Kadee couplers.  The 2-56 6.35 mm (1/4") long screws commonly used for couplers are slightly too long for the blind holes.  Options are to shorten the screws by 0.5 to 1 mm, or to add a flat washer between the head of the screw and the coupler.  Railwest Models sells suitable washers with a 2.2 mm hole diameter.

Stiffening Rods


The WMC/WMD model includes provision for two metal rods to be inserted within the underframe structure to provide stiffness and guard against possible future warping of the plastic material over time.  Each of the transverse frame members includes two holes approx. 2.2 mm diameter, as part of the 3D print.

Location of stiffening rods
On the end sill, the hole for the stiffening rod is covered over by a 0.5 mm layer of plastic, opposite the handbrake assembly, as pictured below.  This can easily be drilled through for installation of the rod.  There is a corresponding hole on the diagonally opposite corner of the wagon.

Drill location for stiffening rod
The rods should be a maximum of 2 mm diameter and 140 mm long.  They can be of any strong metal, e.g. steel or brass.  One source of steel rod is threaded push-rods sold for radio controlled models by manufacturers such as Du-Bro, and available from many hobby shops.  These have a threaded section at one end, but the remainder of the rod is plain, about 1.85 mm diameter. Once the rod has been glued into position, the hole in the end sill can be filled with modelling putty and lightly sanded to restore the flat surface prior to painting.

Handrails


Small starter holes have been provided to locate the various handrails.

The WMC has just two handrails on opposite corners.  These can be formed from 0.6 mm brass wire.  Viewed from above, the handrail is an L-shape, with the horizontal portions about 6.25 mm long.  The height from the floor to the top of the handrail should be about 9.5 mm.  The vertical post nearest the coupler can be cut about 2 mm over-length to provide a secure (glued) fixing into the floor.  The vertical post near the side of the wagon should only be over-length by just 0.5 mm so the end of the wire is not visible from the side.

In addition, the WMD has 3 handrails on each end of the hungry boards.  Thinner brass wire, e.g. 0.4 mm should be used for these.  The hole centres for each handrail are 4.75 mm.  The WMD also has wire handrails/steps across the tops of the "chutes" at each end of the hopper.  The 3D print includes small notches for locating these, and the length of the wire should be 9.5 mm (8 required).

Note that the position of handrails and other details varies between different members of the WMD class.  The model depicts the most common arrangement, based on photos of various prototype wagons.

Door Lock Shafts


As part of the locking mechanism for the bottom discharge doors, there are two shafts which have to added using brass wire, either 0.5 or 0.6 mm.  The length of each piece of wire is 40 mm, although it is probably easier to feed a longer length of wire through the holes provided, then trim it to length with fine wire cutters after it has been glued into place.

Location of Door Lock Shafts

Brake Levers and Chains


The handbrake ratchet assembly on the end of the wagon includes a vertical groove to house a 10 mm length of 0.4 mm brass wire, to represent the handbrake lever.  Superglue is recommended for attachment of the wire.

A distinctive detail of the WMC/WMD are the chains running across the floor which connect the handbrake mechanisms with the brake linkage underneath the vacuum cylinders.  North Yard (NZ) make a suitable fine chain which is available from Railwest Models.

Threading the fine chain through the three guides at each end is a bit tricky.  It helps to use a piece of fine but soft wire as a "needle".  The 0.25 mm diameter inner conductor from "wire-wrap" wire used for electronics is suitable.  (If you ask nicely, you might be given a piece with your WMC/WMD!)  Once threaded through the guides, one end should be glued into the small notch provided for the purpose in the horizontal "angle iron" underneath the vacuum cylinder.  Once that end is fixed, the other end should be threaded through the support bracket for the handbrake which has a tapered keyhole-shaped hole.  When gently tensioned, the free end of the chain can be glued into the tapered hole to secure it, and the excess chain trimmed from underneath with fine wire cutters.

Weighting


With the Black Diamond (metal) bogies, the completed wagon weighs around 72 grams.  The "desirable" weight for a wagon of that length (140 mm) is around 95 grams to ensure optimum operation including operation of Kadee couplers.  (See the Sn3½ blog for more information.)

If requred, additional weight can be added by gluing lead shot or small pieces of sheet lead between the various frame members of the underframe, e.g. either side of the hopper doors, where it would not be seen in normal operation.

Painting


Either enamel or acrylic hobby paints can be used to paint the finished model.  The model pictured has been painted with Revell Hobby Enamel.

Sunday, 15 September 2013

VG Bogie Covered Van

Marbelup Models VG after detailing and painting
The VG Bogie Covered Vans were introduced in 1969 and initially ran in red/brown livery before being painted in Westrail yellow.  The photos below, from Rail Heritage WA, shows VG's at Albany and Perth in red/brown livery.

VG (on left) at Albany circa 1971
VG on train approaching Perth Station
Refer to the WAGR Wagon Pages for more information on the prototype.

The body of the VG has been printed in one piece, and includes all details except handrails and two brake pull rods, which have to be added by the modeller using brass wire.  For more information, please refer to the Construction Tips.

Photo of first test print (Please excuse mismatched bogies.)

Railwest Models sells suitable bogies for the VG.  The bogies shown in the photo are by American Models which are for standard gauge, but suitable for regauging to Sn3½  Marbelup Models sells 3D-printed bolsters which greatly simplify the regauging process..

The price of the VG body is approx. $130, subject to exchange rate variations.

Tuesday, 10 September 2013

WAGR WMC Iron Ore Wagon


The WMC wagons for built for and privately owned by Western Mining Corporation (WMC) in the mid 1960's to carry iron ore from the Koolanooka Hills mine near Morawa to Geraldton.  Later the wagons were used for carriage of coal, talc and grain, and were modified by the addition of hungry boards (WMD) or covered roof (WME)  Refer to the WAGR Wagon Pages for more information on the prototype.

The model represents the original WMC design, as used for iron ore traffic, but the WMD version (with hungry boards) is also available.

These photos are of the first test print from i.Materialise.  The bogies fitted to the test model are QR bogies in Sn3½ by Black Diamond Models in Qld.  They are roller bearing style, but slightly different shape to the WAGR bogies fitted to the real WMC's.  They are the correct wheelbase (5' 6").  Marbelup Models is now producing the correct WAGR roller bearing bogies as 3D-printed parts.


Most details are included in the 1-piece 3D-printed body including:
  • Vacuum cylinders at both ends
  • Brake hoses and piping
  • Simulated gear and chain drive for the bottom dump doors
  • Shunters' steps (not present on test model)
Detail to be added by the modeller includes:
  • Two brass wire "shafts" as part of door operating mechanism
  • L-shaped handrails at both ends (brass wire)
  • Handle for handbrake at both ends (brass wire)
  • Chain from handbrake to brake cylinder, at both ends.
For more information, please refer to the construction tips for the WMC and WMD.

End view showing vacuum cylinder and brake hose.
Freshly painted in the spray booth, with handrails and brake chains added.
3D rendering of correct bogies, currently on order as 3D print.

This model will not be available for sale from the i.Materialise Gallery, but can be ordered direct from Marbelup Models.  The cost for the 3D-printed body only will be about $85, subject to exchange rate variations, with postage additional, if required.  3D-printed bogies are available for $35 per pair, not including wheels.  Contact Marbelup Models for availability and confirmation of price.


Wednesday, 4 September 2013

WAGR ZBA Guard's Van

WAGR ZBA Guard's Van


The five ZBA Guard's Vans were converted in the 1950's from BA horse boxes, and were in service until the 1970's.  See the WAGR Wagon Pages for more information on the prototype.

The picture above shows the first test print of this model received from i.Materialise, painted, and with the addition of bogies, couplers, and wire truss rods.  Handrails are yet to be added.

This model is "representative" and is not intended to be "100% accurate", as there were detail variations between the 5 members of the class.  There is limited information surviving in terms of drawings and photographs, so is virutally impossible to determine which variations applied to any particular van.  The overall dimensions are based on outline drawings of the ZBA and BA.

Contact Marbelup Models for availability of this model.  The price is AU$160 (subject to change due to Euro exchange rate variations) plus postage from Perth, Western  Australia, if required.  This model will not be available for sale from the i.Materialise Gallery.

Please refer to our Contruction Tips for details of bogies, couplers, etc. required to complete the model.

Tuesday, 3 September 2013

ZBA Guard's Van Construction Tips

ZBA Main Body Section
The ZBA brake van is printed in two sections.  The main section consists of one side, the roof, ends, and floor.  The other section consists of the other side, including the running boards for that side.

ZBA Flat Side Section

Removing Support Structures

Carefully remove the support structure from both parts of the guard's van.  It is suggested to use a sharp knife  carefully cut the supports away from the roof, ends, and the underframe.  Take particular care around the running boards, brake hoses, the brake gear underneath the floor, and the dividing bars between the double windows.

Be very careful removing the support structures from the open side of the main body section.  Close to the centre, there is a projecting brake shaft, pictured below.  To avoid damaging the brake shaft, it is suggested to remove the supports from around it first.

Brake Shaft
There will be a support on the very end of the brake shaft.  Try to leave approximately 0.5 mm of the narrowed section where the supports is attached to the brake shaft, as this forms a pin which interlocks with a hole in the side section to support the free end of the brake shaft.
Brake Shaft Pin Detail
Because of the ribbing on the brake hoses, the 3D printer's automatic software has generated many support points, which may have merged into one.  Carefully cut between the brake hose and the support structure, using repeated cuts with a sharp knife (e.g. Olfa snap-off blade type), to separate the support structure, then carefully trim the remnants from the hose.

Once the majority of the support structure has been removed, carefully go over both parts and cut away the small supports which typically extend from one part to another, for example, around the brake rigging.  An Exacto type hobby knife with a sharp pointed blade (Exacto #11 or similar) is quite useful for getting into the nooks and crannies.

Go over the model and smooth off any remnants of the fine supports, especially on the edge of the roof on the open side of the main body section.  A sanding stick or small file can be useful for this

When finished, test fit the two halves together.  Interlock the tabs on the top of the flat side under the roof of the main section, then gently move the flat side into position to see how it fits.   There are three tabs on the bottom of the flat side which should end up on top of the floor surface, inside the main part of the van.

Tapping Holes


The mounting holes for the couplers and bogies should be tapped 2-56 (or 8BA).  As printed, the holes are 1.8 mm dia.  Clear out the holes with a 1.8 mm drill in a pin vice, and drill through the floor as well to faciliate tapping.

If desired, the holes in the three tabs on the inside of the flat wall section can be tapped to all the side wall to be fixed in place with screws, rather than glue, to allow for future access to the inside.

Note:  Tapping the holes is preferable to using self-tapping screws which may fracture the material.  Although fairly robust, the material is more brittle than styrene or polyurethane.

Bogies


The spigots on the underframe are designed to suit Walthers bogies Part No. 933-1077.  Other types of bogies can be fitted by cutting away the spigots as required, and building up a mounting platform at the required height from styrene sheet.  If using different bogies, ensure that the mounting height is adjusted so that the coupler mounting surface is 11.5 mm above rail level.

If using the Walthers bogies, the bogies should be dismantled to allow fitting of 12 mm diameter spoked wheels (26 mm axle length).  With care, the brake shoes at the ends of the bogie sideframes can be bent out to provide clearance for the 12 mm wheels.  The bogies are supplied with spare bolsters which have a high mounting boss, and these spare bolsters should be used when reassembling the bogies.

When fitted with the Walthers bogies, the ZBA will negotiate curves down to 600 mm radius.

Couplers


The ZBA is designed for Kadee "whisker" couplers.  Either the #158 (scale size) or #148 (normal size) couplers can be used, with #262 draft gear boxes.

The draft gear boxes supplied with the couplers do not fit as they have a different mounting hole position.  The #262 draft gear boxes are narrower and have been used because they allow details such as the brake hoses to be positioned the scale distance from the van centre line.  Also, the #262 draft gear boxes are easier to use as the lid snaps into position.

Note that the height from rail level to the coupler mounting surface should be 11.5 mm, the standard for Kadee couplers.


Truss Rods


The truss rods can be formed from 0.5 or 0.6 mm brass wire. From a length 94.5 mm long, form a 10° bend 30 mm in from each end, to leave a horizontal section 34.5 mm long.

There are grooves in the lower running boards and running board support brackets into which the truss rods can be glued.  Between the queen posts, the truss rods run on the underside of the lower running boards.  The small projections below the side sills represent the brackets which anchor the truss rod ends on the real guard's van, so the ends of the truss rods should finish in line with these brackets.

Optionally, the truss rods could be extended horizontally at each (e.g. by 5 mm) and glued onto the underside of the side sills for additional strength.

Truss Rod Location (rear view of Flat Side)

Handrails


Small starter holes have been provided to locate the various handrails.

The long handrails on each side can be cut from ?? mm brass wire.  Turned brass handrail knobs are available in various lengths, to allow for the thickness of the doors (1.5 mm), so that the handrails remain parallel to the sides.

The small handrails can be formed from 0.5 mm brass wire.  These include the diagonal handrails on each door, and the horizontal handrail on each door below the long handrail.


Weighting


With the recommended bogies, the completed van weighs around 82 grams.  The "desirable" weight for a van of that length (140 mm) is around 95 grams to ensure optimum operation including operation of Kadee couplers.  (See the Sn3½ blog for more information.)

Additional weight can be added by gluing lead shot or sheet lead between the various frame members of the underframe, where it would not be seen in normal operation, or gluing sheet lead on the floor inside the van.

Painting


Either enamel or acrylic hobby paints can be used to paint the finished model.


Saturday, 17 August 2013

WAGR Relay Cabin

WAGR Relay Cabin


The prototype of this relay cabin was installed in the 1950's along the WAGR South-West main line at a number of stations between Armadale and Coolup, in conjunction with the introduction of Centralised Traffic Control (CTC).  The relay cabins housed signalling relays and associated equipment, as well as telemetry equipment to allow the signalling to be remotely controlled from Perth station initially (later MidSig).


Some of the stations where these relay cabins were installed include Mundijong and Mundijong Junction, Serpentine, Keysbrook and Pinjarra.  Several of the relay cabins are still in use and largely unchanged, apart from replacement of the original corrugated asbestos roofing with iron in the early 2000's.

The 3D-printed model measures 71 mm long x 45 mm wide (not included the roof overhang) and 55 mm high above ground level.  The model includes an extra 5 mm deep "foundation" when can be recessed into the layout scenery to allow for slight undulations in the ground surface.

The model is printed in one piece and is complete apart from painting and installation of "windows" (not included).  Removal of the support materials (pictured at left) are also required.

This model is printed by i.Materialise in their Prime Gray material, but will not be available for sale from the i.Materialise Gallery.  Contact Marbelup Models for availability.  The prices is approx. $90 subject to exchange rate variations.


Tuesday, 13 August 2013

WAGR R Class Diesel

Photo of assembled model with added details, painting and decals.

Here you will find information of the 3D Printed parts designed by Marbelup Models which will allow a model railway enthusiast to build their own model of a WAGR R class diesel in Sn3½ scale (i.e. 1/64 scale, 16.5 mm gauge).

Marbelup Models has also developed 3D-printed model of the RA class diesel.  The RA is about 16 mm (in S scale) longer than the R class.  The short hood is longer, as is the narrow section of the long hood immediately behind the cab.  The fuel tank is also longer, and the RA does not have the dynamic brake grilles in the end and top of the long hood.  The RA also has different headlights, with the twin lights being mounted side by side rather than vertically.

All of the major parts for the R class have been designed to be produced as 3D printed plastic parts, including:
  • Loco Body - $180*
  • Chassis - $95*
  • Bogies - $50 per pair*
  • Fuel Tank - $35*
Total cost for above 3D-printed parts - $360*

* Costs are subject to exchange rate variations between AU$ and Euro.

The 3D printed parts have been designed based on plans and photographs of the R class locomotives "as delivered" in 1968.  As with many locomotives, various modifications were carried out over their life.

In addition to the 3D-printed parts, the modeller must obtain a number of other parts in order to complete the locomotive.  Please refer to the Assembly Tips for a list of the parts required, and helpful tips.
